Multistage Centrifugal Pump

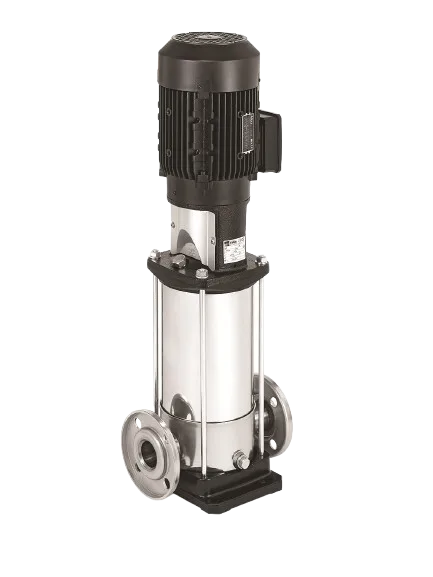

The EVMS range of centrifugal vertical multi-stage pumps manufactured by Ebara is the perfect solution for a wide range of commercial and industrial applications such as pressure boosting, boiler feed, water treatment and irrigation. The range covers flow rates up to 120 m3/hr, pressures up to 32.0 bar and motor power up to 45.0 kW.
The EVMS range benefits from an innovative impeller design. Fitted with the patented Shurricane impeller, the design enables an 80% reduction in axial thrust which extends the life of the motor bearings and allows the use of any standard motor without reinforced thrust bearings.
Other design features include a cartridge mechanical seal for easy replacement and a spacer coupling on motor sizes over 5.5 kW for easier maintenance.
All contact parts in standard versions are manufactured from AISI 304 stainless steel with AISI 316 stainless steel as an option. Pumps are available with oval flange connections on smaller sizes, with round flanges available across the range.
All models up to 4.0 kW motor size can be fitted with the motor mounted E-SPD+ variable speed drive for constant or differential pressure, flow or temperature control.
